Motor - 24v

Rated wattage: 250w (0.33 Horsepower)

Rated load rpm: 400

Battery Capacity : 2600 mAh cell x28Pis = 7s4P 24V10.4Ah
Battery Millage: 40Km approx.

BMS: 7S20A BMS

Torque (NM): 22

Rated current: 13.4 amps

Charger is Lithium Battery Type Charger 29.4v.

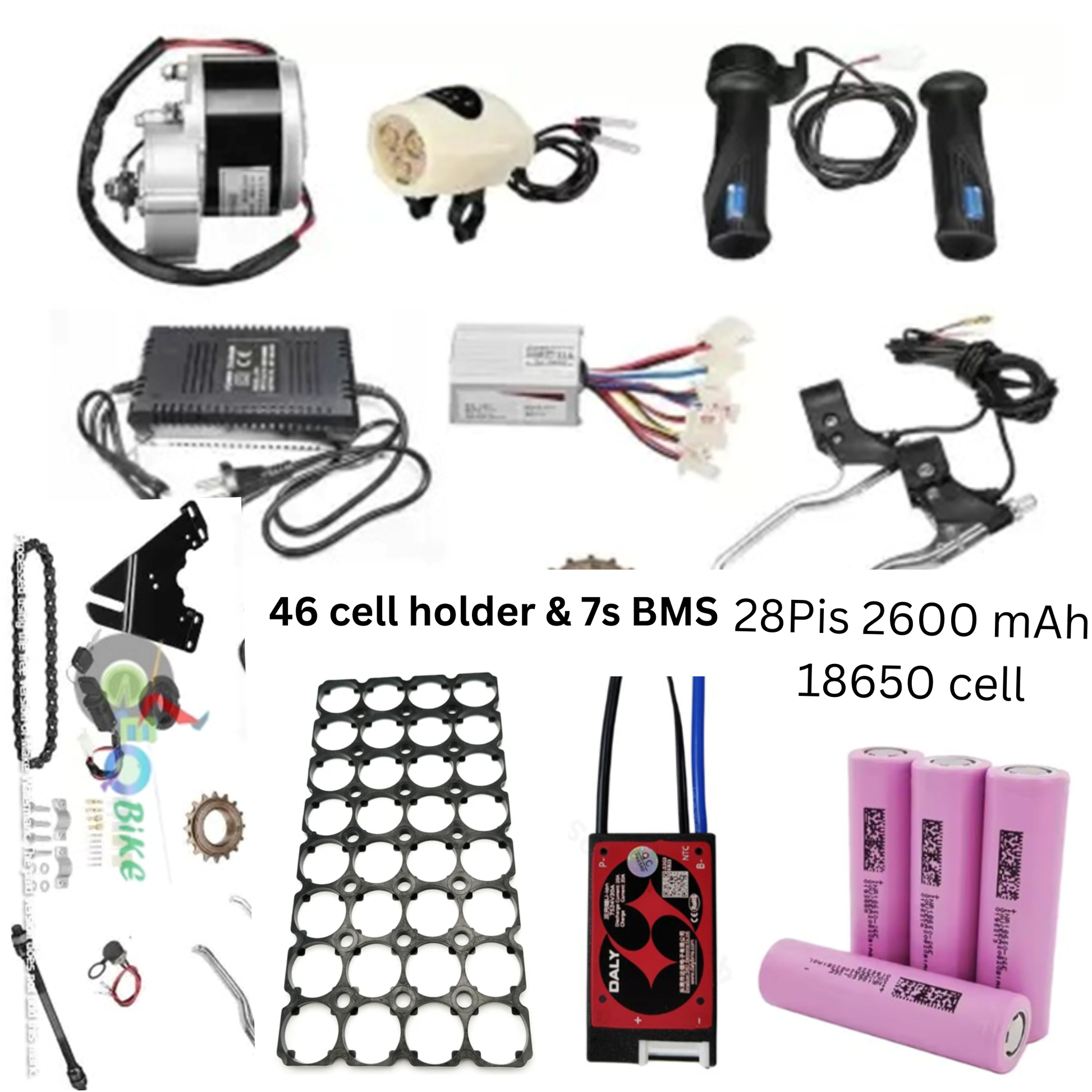

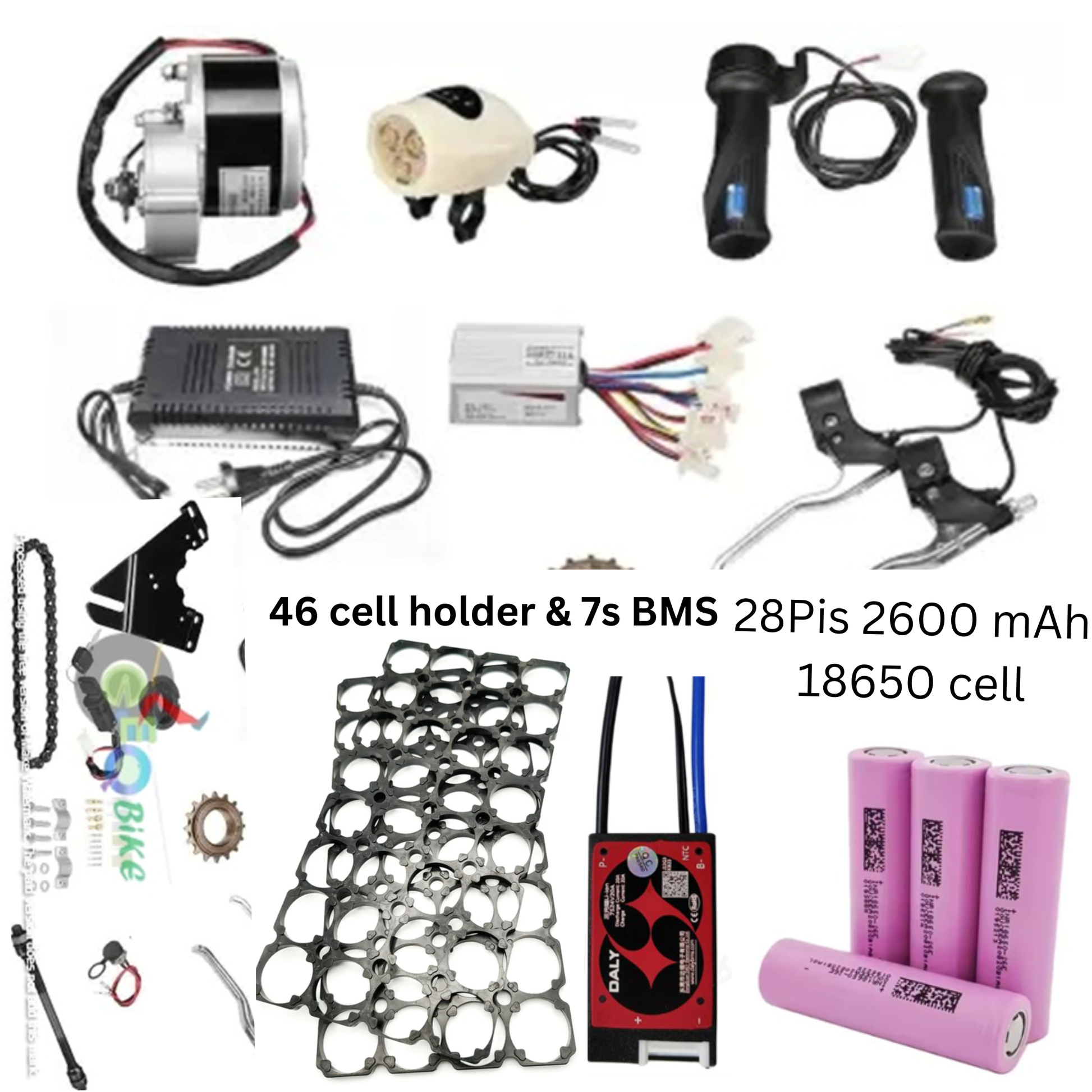

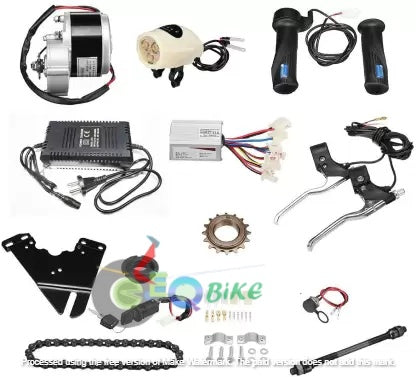

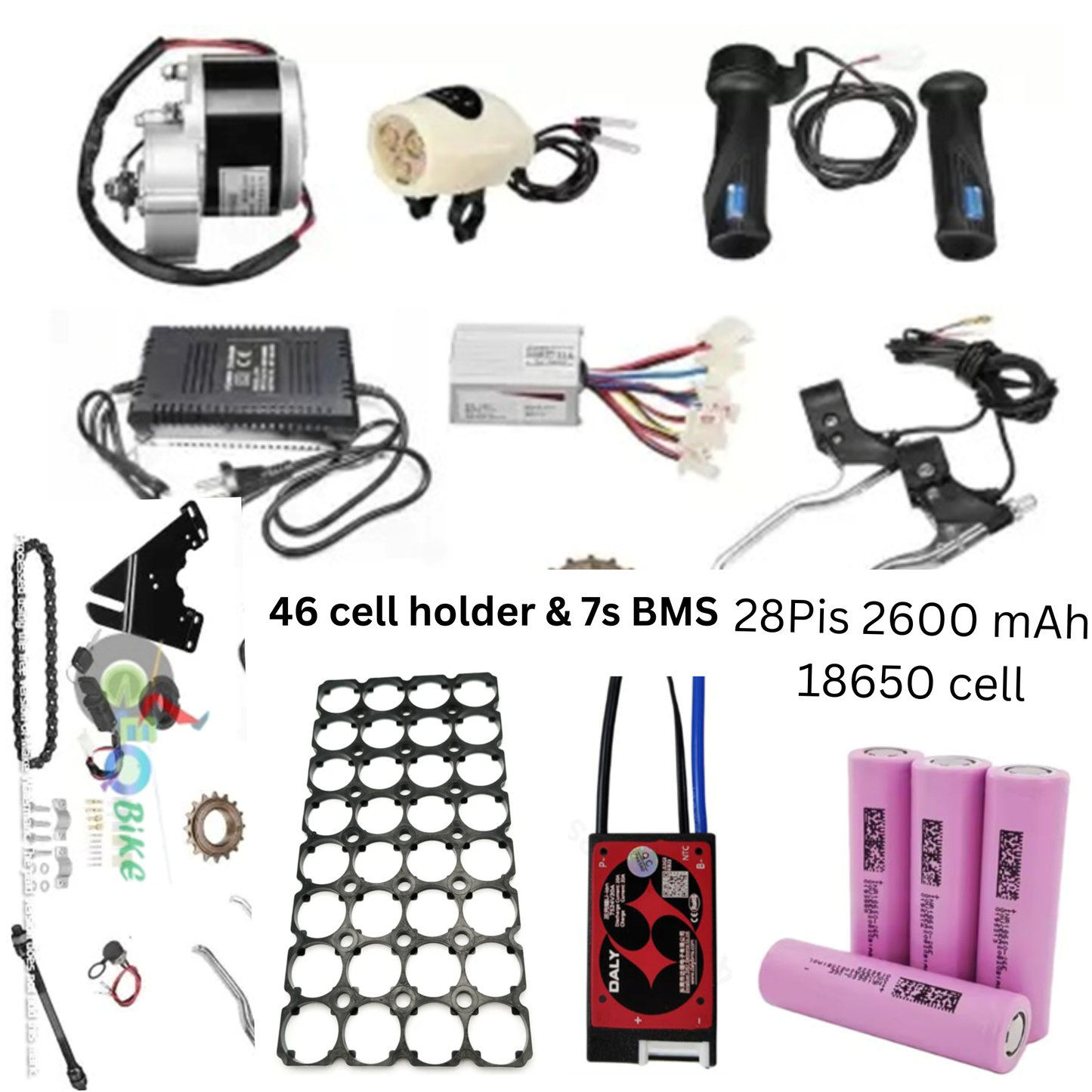

packing details - the motor kit includes:

1. 1pcs x my1016z2 dc 24v 250w Gear motor

2. 1pcs x motor controller

3. 1pcs x chain

4. 1pcs x freewheel

5. 1pcs x freewheel adapter

6. 1pcs x mounting plate with bolts

7. 1pcs x throttle handle & brake lever

8. 1pcs x headlight

9. 1pcs x switch & key

10.1pcs x axial

11. 28pcs x 3.6v2600mAh lithium Ion battery 🔋

12. 1 pis 7S20A BMS

13. 56 Hole Holder

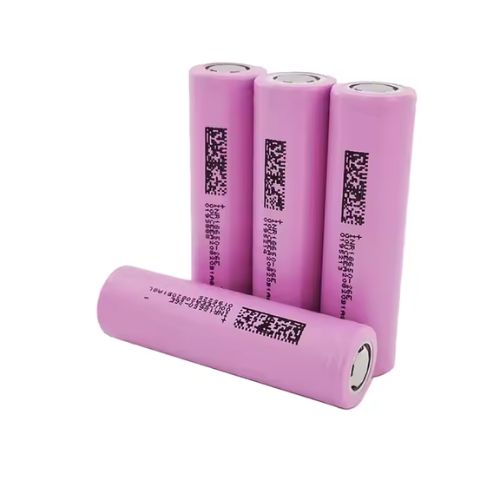

DMEGC Cylindrical Lithium-ion Cell 2600mAh 3.65V 18650 – High Performance & Reliable Power

The DMEGC Cylindrical Lithium-ion 18650 Cell is a high-performance, rechargeable lithium-ion battery with a 2600mAh capacity and a 3.65V nominal voltage. Designed for high energy density, long cycle life, and stable performance, this cell is ideal for portable electronics, power tools, electric vehicles (EVs), energy storage systems, and custom battery packs.

Key Features

• High Capacity & Voltage: 3.65V nominal voltage with a 2600mAh capacity for extended usage.
• Long Cycle Life: Over 1,000 charge cycles, ensuring durability and cost-effectiveness.
• Fast Charging & Discharging: Supports high charge/discharge currents for high-performance applications.
• Stable Performance: Low internal resistance for efficient power output.
• Enhanced Safety: Built-in protection against overcharging, over-discharging, and short circuits.
• Eco-Friendly: Free from toxic heavy metals like lead and cadmium.

Technical Specifications

• Model: 18650

• Nominal Voltage: 3.65V

• Nominal Capacity: 2600mAh

• Minimum Capacity: 2500mAh

• Charge Voltage: 4.2V

• Discharge Cutoff Voltage: 2.5V

• Cycle Life: >1,000 cycles (80% DOD)

• Max Charge Current: 1C (2.6A)

• Max Discharge Current: 2C (5.2A)

• Dimensions: 18mm x 65mm

• Weight: Approximately 45g

Applications

The DMEGC 2600mAh 18650 cell is widely used in various applications:

Portable Electronics & Power Banks

Perfect for laptops, flashlights, power banks, and other consumer electronics, ensuring long-lasting power.

Power Tools & DIY Battery Packs

Provides consistent high power output, making it ideal for cordless drills, electric screwdrivers, and other tools.

Electric Vehicles (EVs) & E-Bikes

Offers a stable and high-energy output for electric bicycles, scooters, and lightweight electric vehicles.

Energy Storage Systems

Can be used in solar energy storage systems, home battery banks, and off-grid applications.

Why Choose DMEGC Cylindrical Lithium-ion Cell 2600mAh 3.65V 18650?

1. Superior Lifespan: Long cycle life compared to standard lithium-ion cells.
2. Enhanced Safety: No risk of thermal runaway, explosion, or fire.
3. Energy Efficient: Low self-discharge rate and high efficiency.
4. Environmentally Friendly: 100% recyclable and non-toxic materials.
